Two-dimensional Hydraulic and Hydrological modeling

RiverFlow2D is the most advanced two-dimensional combined hydraulic and hydrologic flexible-mesh model, offering a high-performance finite-volume engine for speedy, accurate, and volume conservative computations in all river and estuary projects. It can tackle the most demanding flood modeling situations including dam-break and levee-break simulations over initially dry terrain.

RiverFlow2D can be readily extended with Add-on Modules: Sediment Transport (ST), Mud and Tailings Flow (MT), Pollutant Transport (PL), Water Quality (WQ), Urban Drainage (UD) and Plastic Transportation (PT).

RiverFlow2D can use two Graphical User Interfaces (GUI): QGIS or Aquaveo SMS(*). Both GUIs allow generating the files needed to run the model.

RiverFlow2D with GPU high-performance capabilities can achieve simulation speeds never seen before in 2D simulations. It can tackle high resolution, and large river reaches that used to be impractical or even impossible until recently. The model has been a game-changer for many 2D modelers that often find 700X faster simulations compared to non-parallelized or poorly parallelized models.

Traditional CPU processor performance has reached its peak, but Hydronia’s RiverFlow2D GPU developed in collaboration with the world-renowned Computational Hydraulics Group of the University of Zaragoza in Spain,  offers a high-performance numerical engine, that when run used with off-the-shelf NVIDIA graphics cards provides unprecedented performance to the most demanding flooding simulations.

For a RiverFlow2D Free Trial please click here

Why RiverFlow2D is your best choice? Learn more

RiverFlow2D Overview

What can you simulate with RiverFlow2D?

• Detailed riverine and estuary hydrodynamics

• River and floodplain interaction

• Urban flooding

• Urban flooding including stormwater network (requires the UD module)

• Hydraulic impact of bridges and other hydraulic structures

• Dam and levee break flooding

• Erosion and deposition processes in rivers and estuaries (requires the ST module)

• Assessment of pollutant spills in rivers (requires the PL or WQ module)

• Tailings dam-break floods (requires the MT module)

• Mud and debris flow (requires the MT module)

Why choosing RiverFlow2D GPU?

• Reduce runtimes from days or hours to minutes

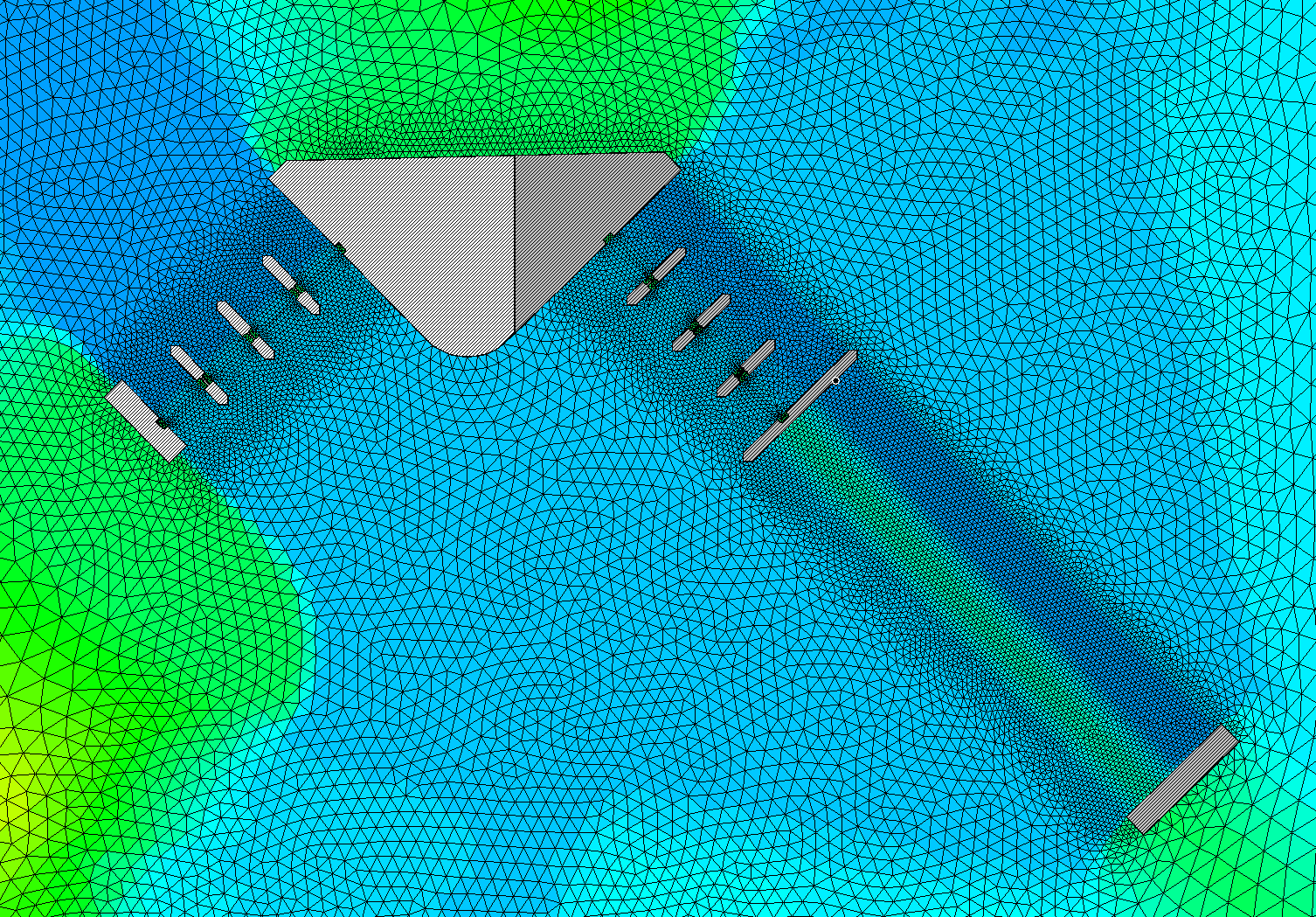

• Triangular unstructured mesh allows adapting the model to any terrain and boundaries

• Comprehensive mesh generation GUI using SMS(*)

• Import virtually any terrain elevations

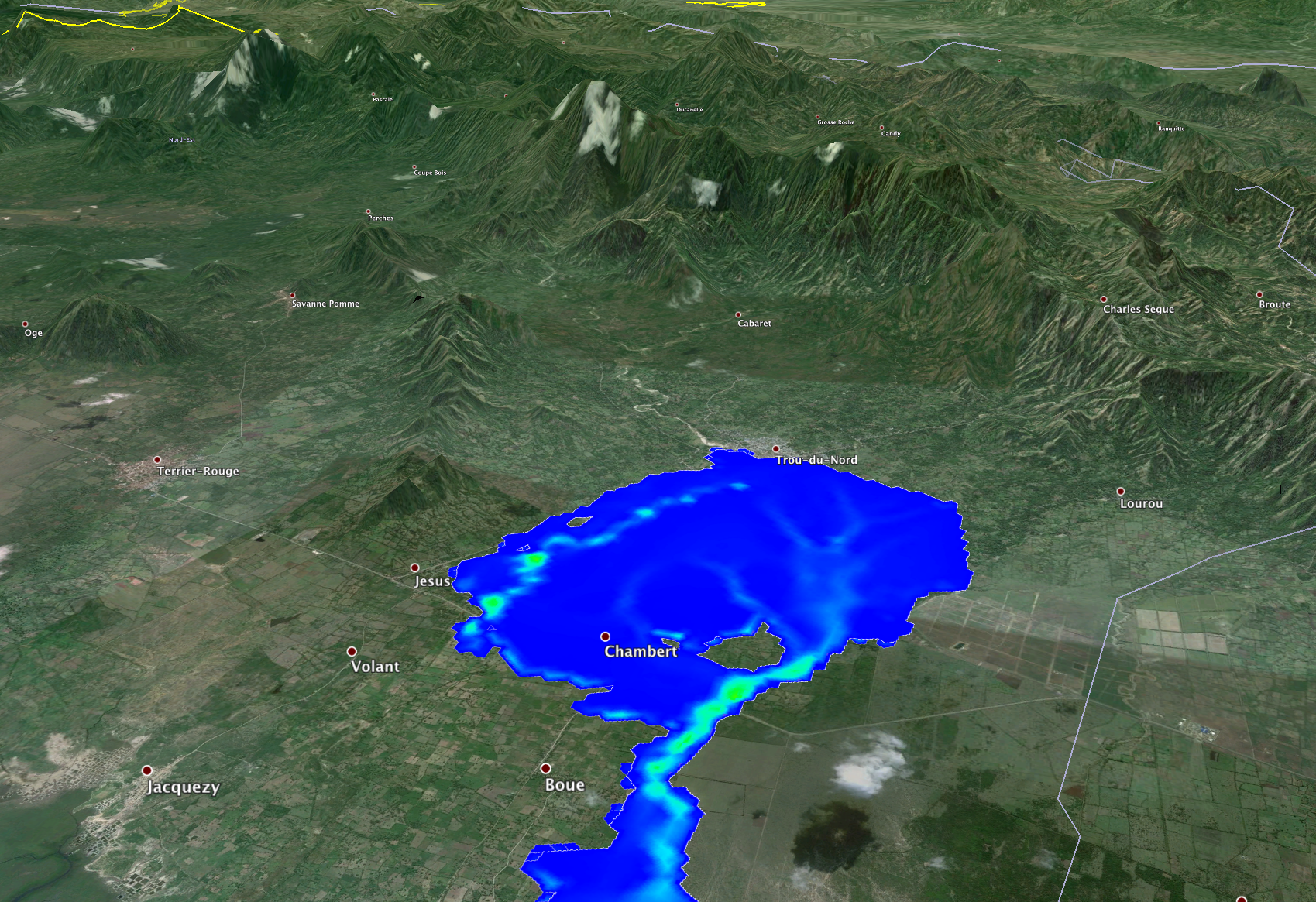

• Output animations and 3D graphics including Google Earth

• Zero Volume Conservation Error

• Up to 700x faster simulations

• Free online training and technical support

RiverFlow2D GPU main capabilities

Mesh Generator

• Automatic generation of flexible triangular- element mesh

• Unlimited element refinement

• Mesh quality report

• Spatially varied interpolation methods including

  • Triangular (TIN)

  • Inverse Distance Weighting

  • Nearest neighbor

  • Sampling, and many more

Hydraulic Components

• Culverts using US FHWA formulation

• Bridge pier drag forces

• Weirs and Gates

• Internal hydraulic structures

• Sources and sinks

• Rainfall and evaporation

Input Data Formats

• Metric or English units

• ASCII X, Y, Z

• ESRI ASCII grid files

• USGS DEM

• ESRI Shape files

• Autodesk DXF

• TIFF, GIF, BMP raster’s

Output Options

• Results at cross sections and profiles

• Observation points

• Dynamic plots while the model runs

• Maximum velocity and water elevations

• Depth, velocity, bed elevation, erosion or deposition, Froude number, bed shear stress and sediment discharge

• Polygon, line and point ESRI

Shape files

• Autodesk DXF mesh and velocity fields

• GIS post processing plots including shape files and raster images

• Velocity field, depth and WSE

• Bed shear stress

• Erosion and deposition

• HDF5

• VTK

Initial Conditions

• Dry-bed

• User-defined water elevations

(*) Note that the RiverFlow2D for SMS does not include all of the model capabilities and features available for the QGIS version. Please, email us at support@hydronia.com for more details.
